Migrate all the things

One of the common tasks with Hyper-V is to migrate a VM from one node to another. You can do it the hard way (export/copy/import) or the easy way - with Live Migrate. Sometimes you may want to migrate only storage (one LUN/CSV to another). As always - there are multiple ways to achieve that:

  1. Using GUI
  2. Using PowerShell

Migrate using GUI

This is a fairly simple yet boring process.

Select a VM you want to migrate, right click and then move:
GUI1
Move the complete VM or just the storage:
GUI2 Select the host you want to migrate the VM to:
GUI3
Select what you want to migrate. Here I’m migrating everything (compute and storage) together:
GUI4

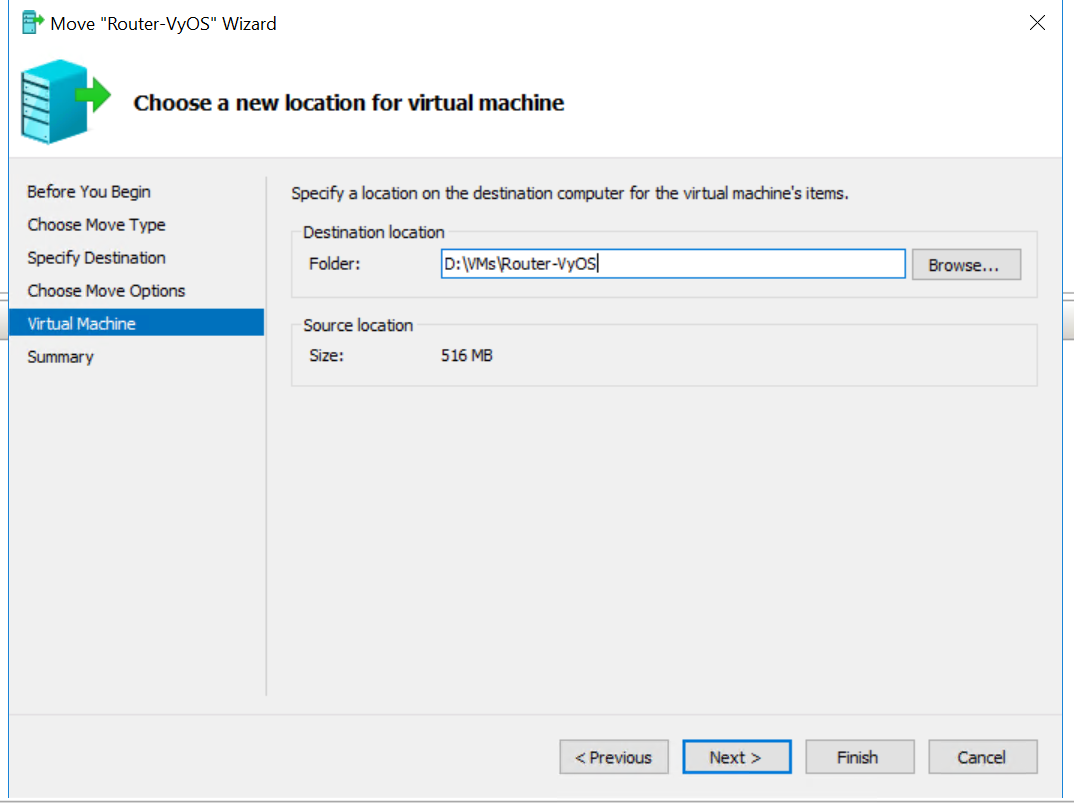

Provide the path where VM files should be stored:
GUI5

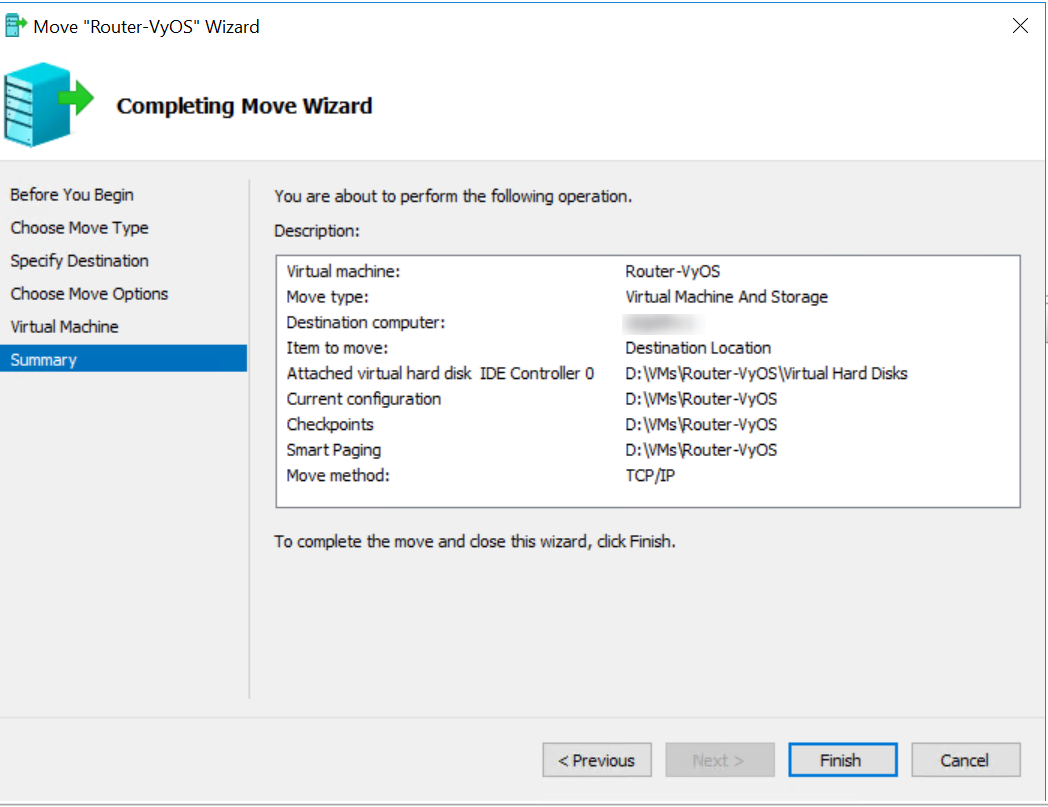

Verify all settings and click finish:
GUI6

Migrate using PowerShell

The same can be achieved using one line:

Move-VM -Name 'Router-VyOS' -DestinationHost 'OBJPLTHV1' -IncludeStorage -DestinationStoragePath 'D:\VMs\Router-VyOS'

Status of migration

Once you initiate the migration it would be good know its current status, right?

  1. Using GUI
  2. Using PowerShell

Check status using GUI

Using Hyper-V Manager console you can track this per Hyper-V host:
GUI7

Check status using PowerShell

This becomes less convenient if you have multiple hosts or cluster and more migrations going on. Or you want to automate it e.g. some response once a migration is done.

To get the required information, we’ll use Get-CimInstance:

Get-CimInstance -Namespace root\virtualization\v2 -ClassName Msvm_MigrationJob

I’ve created a small function that works with remote hosts and credential parameter. It will generate a nice output with following information:

  • VMName
  • State of VM
  • Status of migration
  • Description - a more verbose step of current migration
  • JobStatus - is it running, completed or cancelled
  • PercentComplete
  • Owner - who initiated the migration
  • SourceHost and DestinationHost
  • DestinationPath - where VM files will be stored
  • VMID - ID of a vm - may be handy for automation
  • StartTime and ElapsedTime
  • ErrorDescription and ErrorSummaryDescription in case of error
function Get-VMStorageMigrationStatus {
    <#
    .SYNOPSIS
    Get current status of VM migration

    .DESCRIPTION
    Uses Invoke-Command to connect to Hyper-V host and check any VMs running storage migration and status of it

    .PARAMETER ComputerName
    Computername of Hyper-V host

    .PARAMETER Credential
    Optional credential parameter

    .EXAMPLE
    Get-VMStorageMigrationStatus -ComputerName Host1 -Verbose
    VERBOSE: Processing with default credentials of user {mczerniawski_admin}

    VMName                  : VM1
    State                   : Off
    Status                  : Migrating virtual machine
    Description             : Moving Virtual Machine and Storage
    JobStatus               : Job is running
    JobName                 : Moving Virtual Machine and Storage
    PercentComplete         : 22
    Owner                   : CONTOSO\mczerniawski_admin
    SourceHost              : Host1
    DestinationHost         : Host2
    DestinationPath         : D:\VMs\Router-VyOS
    VMID                    : 42B54F68-5E1D-48D9-96CE-3370175F22C4
    StartTime               : 07/09/2019 09:31:35
    ElapsedTime             : 00:04:00.7814980
    ErrorDescription        :
    ErrorSummaryDescription :
    PSComputerName          : Host2
    RunspaceId              : 775632c4-be8e-40d0-94d3-38615d457840

    VMName                  : VM2
    State                   : Off
    Status                  : Migrating virtual machine
    Description             : Moving Virtual Machine and Storage
    JobStatus               : Job is running
    JobName                 : Moving Virtual Machine and Storage
    PercentComplete         : 32
    Owner                   : CONTOSO\mczerniawski_admin
    SourceHost              : Host1
    DestinationHost         : Host2
    DestinationPath         : D:\VMs\Router-VyOS
    VMID                    : A2E38807-43BF-4C7D-86C3-4DFF0A8FE5F1
    StartTime               : 07/09/2019 09:32:35
    ElapsedTime             : 00:02:00.7814980
    ErrorDescription        :
    ErrorSummaryDescription :
    PSComputerName          : Host2
    RunspaceId              : 775632c4-be8e-40d0-94d3-38615d457840

    #>

    [CmdletBinding()]
    param(
        [Parameter(Mandatory, HelpMessage = 'Provide ComputerName Name',
            ValueFromPipeline, ValueFromPipelineByPropertyName)]
        [ValidateNotNullOrEmpty()]
        [System.String[]]
        $ComputerName,

        [Parameter(Mandatory = $false, HelpMessage = 'Provide Credentials for ComputerName',
            ValueFromPipeline, ValueFromPipelineByPropertyName)]
        [System.Management.Automation.PSCredential]
        $Credential


    )
    process {
        foreach ($Computer in $ComputerName) {
            #region PSSession parameters
            $connectionParams = @{
                ComputerName = $Computer
            }
            if ($PSBoundParameters.ContainsKey('Credential')) {
                $connectionParams.Credential = $Credential
                Write-Verbose -Message "Processing with provided credentials {$($Credential.UserName)}"
            }
            else {
                Write-Verbose -Message "Processing with default credentials of user {$($env:USERNAME)}"
            }
            #endregion
            Write-Verbose -Message "Processing computer {$Computer}"
            Invoke-Command @connectionParams -ScriptBlock {
                $StorageMigrations = Get-CimInstance -Namespace root\virtualization\v2 -ClassName Msvm_MigrationJob
                if ($StorageMigrations) {
                    foreach ($stMigration in $StorageMigrations) {
                        $VMDetails = Get-VM | Where-Object {$PSItem.ID -eq $stMigration.VirtualSystemName}
                        $xml = [xml]($stMigration.NewSystemSettingData)
                        [pscustomobject]@{
                            VMName          = $VMDetails.Name
                            State           = $VMDetails.State
                            Status          = $VMDetails.Status
                            Description     = $stMigration.Description
                            JobStatus       = $stMigration.JobStatus
                            JobName         = $stMigration.Name
                            PercentComplete = $stMigration.PercentComplete
                            Owner           = $stMigration.Owner
                            SourceHost      = $env:COMPUTERNAME
                            DestinationHost = $stMigration.DestinationHost
                            DestinationPath = $xml.Instance.property | Where-Object {$psitem.Name -eq 'ConfigurationDataRoot'} | Select-Object -ExpandProperty Value
                            VMID            = $stMigration.VirtualSystemName
                            StartTime       = $stMigration.StartTime
                            ElapsedTime     = $stMigration.ElapsedTime
                            ErrorDescription = $stMigration.ErrorDescription
                            ErrorSummaryDescription = $stMigration.ErrorSummaryDescription
                        }
                    }
                }
            }
        }
    }
}

If I need to query all nodes of a failover cluster, I’m using this snippet:

$HyperVHost = 'hvcluster0' #clustername 'hvcluster0' or hostname 'host1'
#$Credential = Get-Credential
$Cluster = $true
$connProperties = @{
    ComputerName = $HyperVHost
}
if ($Credential) {
    $connProperties.Credential = $Credential
}
if ($Cluster) {
    $Nodes = Invoke-Command @connProperties -ScriptBlock {
        Get-ClusterNode | where-object {$_.State -eq 'Up'} | select-object -ExpandProperty Name
    }
    $connProperties.ComputerName = $Nodes
}


Get-VMStorageMigrationStatus @connProperties | Format-Table -AutoSize

And the output will be similar to this:
get-migration
